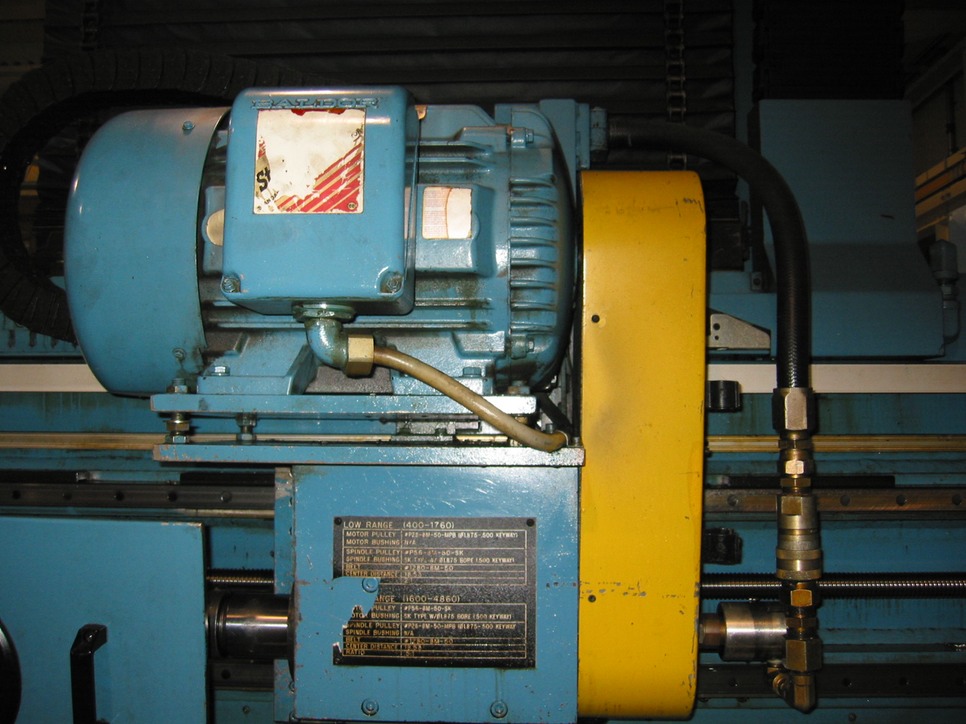

Here we see a motor driving a transmission. There were no complaints from the client. Routine predictive maintenance was offered while the machine was in operation.
![1a.JPG](../_Media/1a_med_hr.jpeg)

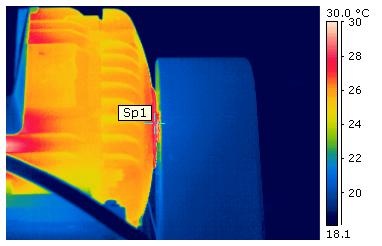

Elevated shaft temperatures at the front bearing journal were detected and flagged using Infrared Thermal Imaging.
![IR 0573.jpg](../_Media/ir_0573_med_hr.jpeg)

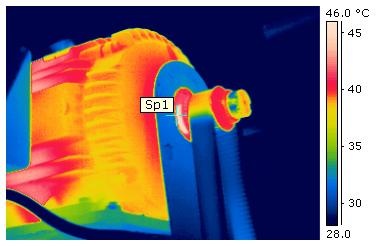

Upon removal of safety guard, additional heating was noted also coming from the bearing journal.
![3b.jpg](../_Media/3b_med_hr.jpeg)

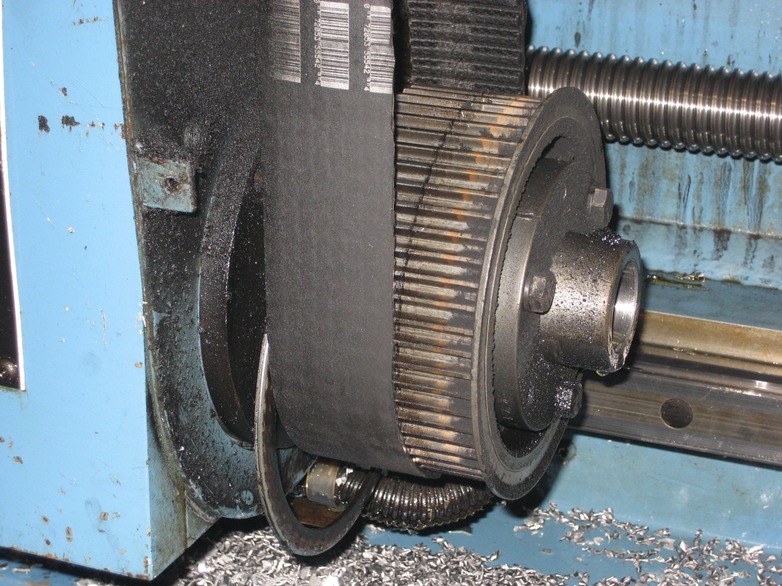

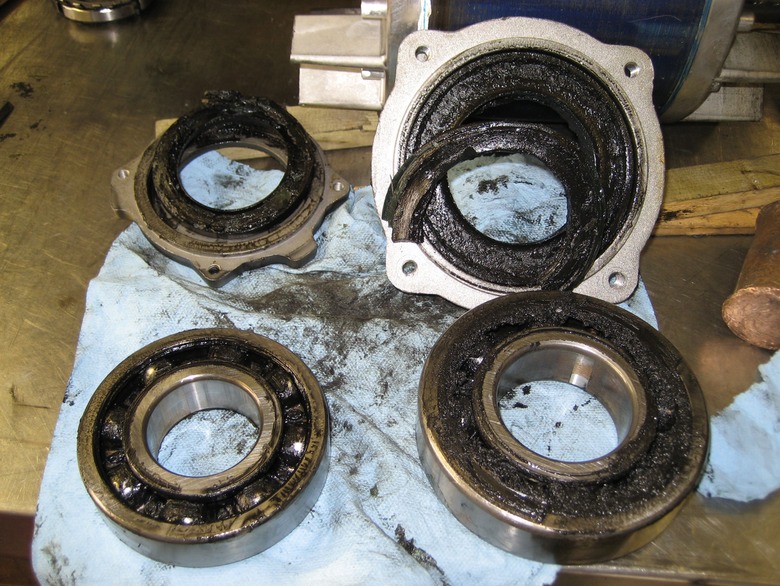

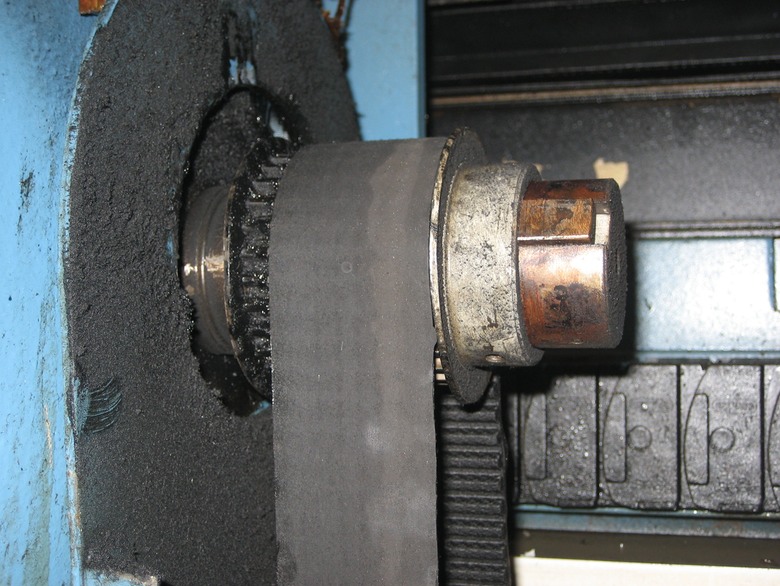

Subsequent removal of safety guard revealed damaged pulley shaft on motor end as well as a broken flange on lower transmission. Followup inspection of disassembled motor revealed worn shaft and keyway resulting in loose fitting pulley. Motor bearings were close to failure. Grease was burnt.
![2b.JPG](../_Media/2b_med_hr.jpeg)
![2c.JPG](../_Media/2c_med_hr.jpeg)
![IMG 0059.JPG](../_Media/img_0059_med_hr.jpeg)
This problem was flagged and proactively pursued before failure and with minimal downtime !!!
